Innovative Smart Glass Greenhouse
特别的的漂亮话
用途很广泛
造价低
Design
Production
Construction
Cultivation Technology
Innovative Greenhouse
Global One-Stop Solution
特别的的漂亮话
用途很广泛
造价低
1. Glass greenhouse is constructed with materials that allow ample light to pass through, with single-layer float glass transmitting more than 90% of light and double layers of hollow glass transmitting over 80%.
2. The greenhouse maintains stable light transmittance, prevents water vapor from entering, and has anti-aging properties to ensure longevity.
3. It also provides protection against dew, helping to maintain optimal growing conditions for plants.
4. The greenhouse design enables a large area to be illuminated, promoting uniform indoor lighting for optimal plant growth.
5. Inside the greenhouse, there is a spacious and well-lit environment, providing ample operating space and maximizing the overall utilization of the greenhouse.
6. In addition to its functionality, the glass greenhouse is aesthetically pleasing and adds to the visual appeal of the surrounding area with its strong ornamental features.
7. The greenhouse is equipped with a robust drainage system, capable of handling large areas and accommodating multi-span configurations for efficient water management.

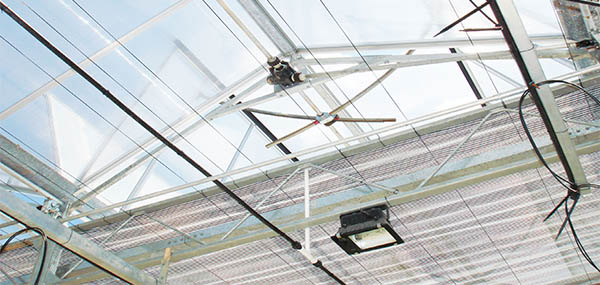

Top Shading System
Electric opening/closing, high-quality shading net, gear and rack drive.

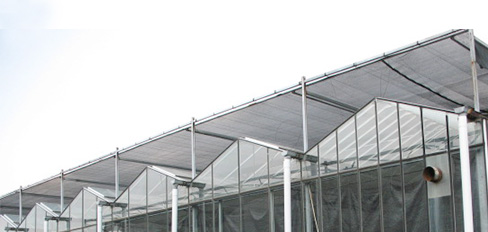

Top Shading System - Extended State
Can be fully extended or partially extended, allowing for adjustable control.

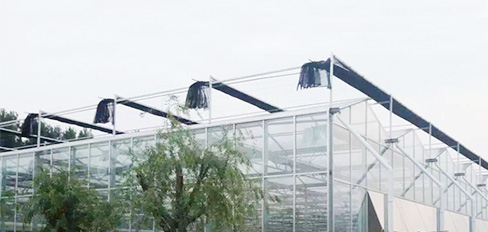

Axial Flow Fans
Ventilation and exhaust. Max airflow: 40,000 m³/h per unit.

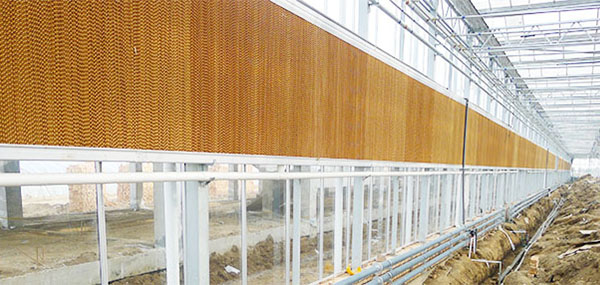

Cooling Wet Curtains
External hot and dry air passes through the wet curtains, transforming into cool and humid air.

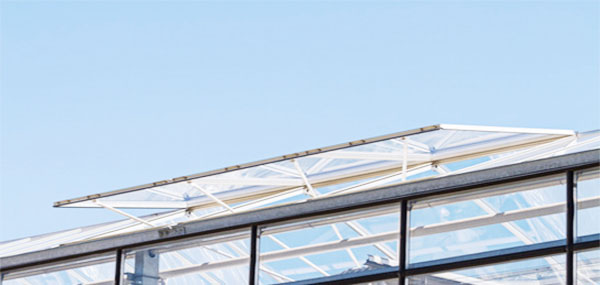

Top Opening Windows
Electric opening and closing. Ventilation, exhaust, and temperature control.

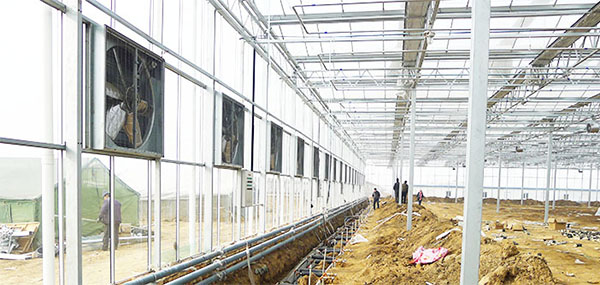

Internal Shading & Insulation
Prevents heat loss and adjusts sunlight intensity inside the greenhouse.
Main Frame |
Steel frame, high temperature, humidity, and corrosion resistance. Lasts over 30 years. |
Covering Materials |
Double-layer hollow glass for high light transmittance and thermal insulation. |
Installation |
Bolt connection, no welding, stable and durable. |
Customizable options available::
IoT smart automation system, heating system, cultivation equipment, and more.
Build your ideal greenhouse with tailored solutions.
Type | Multi-Span Glass Greenhouse | Span Width | 10.8m/12m/customized |
Bay width | 4m /8m | Gutter hight | 3-8m |
Snow load | 0.5KN/M2 | Wind load | 0.6KN/M2 |
Hanging load | 15KG/M2 | Max rainfall discharge | 140 mm/h |
Customizations available to meet your specific needs. |
